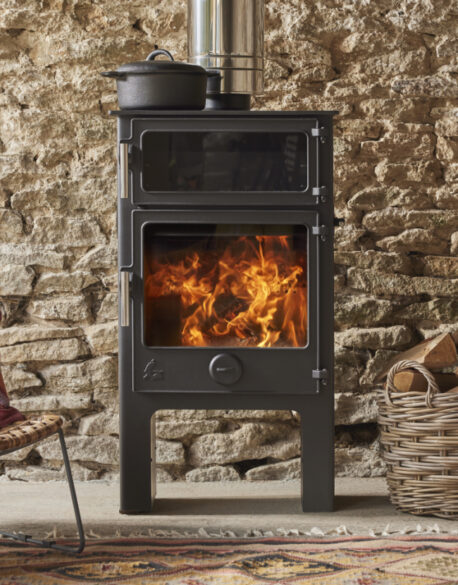

Dartmoor Baker W5 High Eco

Dartmoor  Baker W5 High Eco – Key Features

  • Only 50mm distance to combustibles to the rear when fitted with a double heat shield and twin wall flue
  • Supplied as a wood burner or a multi-fuel and option to convert at any time back to a multi-fuel or wood burner if required.
  • Powerful preheated airwash system
  • Independent primary & secondary air controls
  • Top and rear flue outlets.  Tertiary air.
  • Can be fitted onto a non-constructional hearth.
  • DEFRA exempt (approved for  smoke control areas)
  • Eco Design
  • Oven vents allow the cooking smells and condensation to be drawn out of the oven and up the chimney
  • Rear flue outlet creates a clear area, providing extra space to access the hotter part of the top plate.  Note a special Dartmoor Baker rear flue adaptor with flue cleaning access can be purchased to achieve this.
  • A removable cleaning plate is located inside the oven.  This provides cleaning access to the top of the oven or for sweeping the chimney when fitted with a top exit flue.
  • All Dartmoor Bakers can be manufactured with an extended stove top.
  • Extended Top available – Top width +150mm
  • Max log length 380mm

    Baker W5 High Eco – Key Facts

    Nominal Output 5kw
    Efficiency 82.1%
    Flue Size 125mm
    Standard Leg Length 230mm
    Flue Centre Top 133mm
    Flue Centre Rear 835mm
    Eco 2022 (Ecodesign Ready) √
    Energy Efficiency Rating A+
Only 50mm distance to combustibles to the rear when fitted with a double heat shield and twin wall flue.

All the Dartmoor Baker W5 High Eco’s have an option to be manufactured with an extended stove top (left or right hand side) top width + 565mm.
Please state your preference when placing your order.
Baker stoves are supplied with stainless steel door handles.

Colour Details Dimensions
Flat Black Baker W5 High Eco W: 565
H: 1000
D: 320
D: 330 With Double Rear Heat Shield
D: 375 (with handle)

Distance to combustibles (mm) Rear of
Stove		 Side of
Stove		 With Rear
Heat Shield
Baker W5 High Eco 200 350 50

Oven Sizes A B C D E
Baker 5 Eco 155mm 205mm 150mm 100mm 280
Baker W5 Eco 140mm 205mm 180mm 112mm 410
Baker 8 Eco 177mm 250mm 180mm 112mm 410


Dean Forge Colour Options – Due to the limitations of the media process actual colours may vary.
