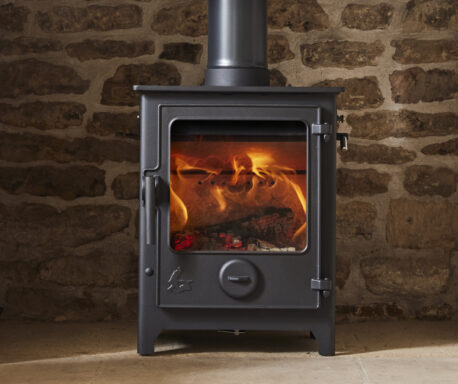

Dartmoor 5 Eco

Traditional, classic, timeless.

The true embodiment of timeless tradition.  Crafted with precision and care, these stoves seamlessly blend classic design with modern eco-friendly features.  The Dartmoor 5 Eco not only excels at efficiently heating your home but also adds a touch of elegance to your living space.

Dartmoor 5 Eco – Key Features

  • Supplied as a wood burner or a multi-fuel and option to convert at any time back to a multi-fuel or wood burner if required.
  • Only 130mm distance to combustibles to the rear when fitted with a double heat shield and twin wall flue.
  • Eco 2022 Compliant (Ecodesign)
  • 5kw nominal output
  • Powerful preheated airwash system for a clearer view of the fire.
  • Supplied with a black handle as standard or optional stainless steel handle.
  • Independent Primary & Secondary air controls
  • Top and rear flue outlets
  • Tertiary air
  • Can be fitted onto a non-constructional hearth
  • DEFRA exempt (approved  for smoke controlled areas)
  • Max log length 280mm

    Dartmoor 5 Eco – Key Facts

    Nominal Output 5Kw
    Efficiency 82.1%
    Flue Size 125mm (5″)
    Standard Leg Length 50mm (2″)
    Top Flue Centre from rear of stove 133mm
    Rear Flue Centre from floor 438mm
    Mean CO emission 0.08
    Energy Efficiency Rating A+

Dartmoor 5 Eco Colour – Flat Black Dimensions (mm) W: 430 H: 540 D: 315 Inc handle D: 375
Distance to combustibles (mm) Rear of Stove Side of Stove
Dartmoor 5 Eco 150 550

Calculate heat requirement for your room

× × - kw

Dean Forge Colour Options – Due to the limitations of the media process actual colours may vary.

Dartmoor-Range-Black-Door-Handle
Dartmoor 5 Eco Spares
