The stove that can do it all…

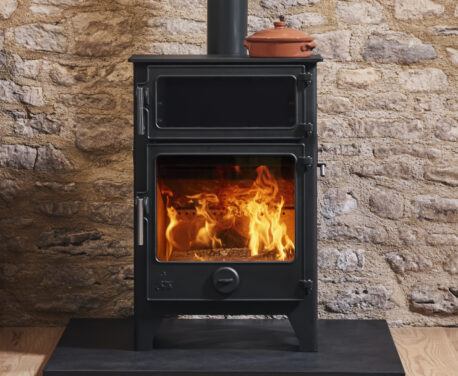

Designed for versatility, this 5kw wood burning stove allows you to prepare your favourite meals while enjoying the incredible warmth and ambiance it provides. Perfect for open plan living spaces this multi-functional centrepiece brings both practicality and style to your home with modern eco-friendly features. The Dartmoor Baker W5 Eco 5kw wood burning stove has an integral oven above the fire box utilising the heat from the fire with a good size oven and three shelf heights.

Dartmoor Baker W5 Eco – Key Features

Only 50mm distance to combustibles to the rear when fitted with a double heat-shield and twin wall flue.
Supplied as a wood burner or a multi-fuel and option to convert at any time back to a multi-fuel or wood burner if required.
Powerful preheated airwash system
Independent primary & secondary air controls
Top and rear flue outlets. Tertiary air.
Can be fitted onto a non-constructional hearth.
DEFRA exempt (approved for smoke control areas)
Eco Design
Oven vents allow the cooking smells and condensation to be drawn out of the oven and up the chimney
Rear flue outlet creates a clear area, providing extra space to access the hotter part of the top plate. Note a special Dartmoor Baker rear flue adaptor with flue cleaning access can be purchased to achieve this.
A removable cleaning plate is located inside the oven. This provides cleaning access to the top of the oven or for sweeping the chimney when fitted with a top exit flue.
All Dartmoor Bakers can be manufactured with an extended stove top.
Extended Top available – Top width 150mm

Max log length 380mm

Baker W5 Eco – Key Facts

Nominal Output	5Kw
Efficiency	83.1%
Flue Size	125mm (5″)
Standard Leg Length	105mm (4.13″)
Flue Centre Top	133mm
Flue Centre Rear	685mm
Eco 2022 Compliant	√
Energy Efficiency Rating	A+

Only 50mm distance to combustibles to the rear when fitted with a double heat shield and twin wall flue.

Colour	Details	Dimensions
Flat Black	Baker W5 Eco Profiled Flat Top	W: 565 H: 850 D: 320 D: 375 with handle D: 330 Depth with Double Heat Shield

All the Dartmoor Baker Eco stoves can be manufactured with an extended stove top. The Baker 5 Eco (top width +120mm); Baker W5 (+150mm); Baker 8 (+180mm), and comes as standard on the left hand side.
